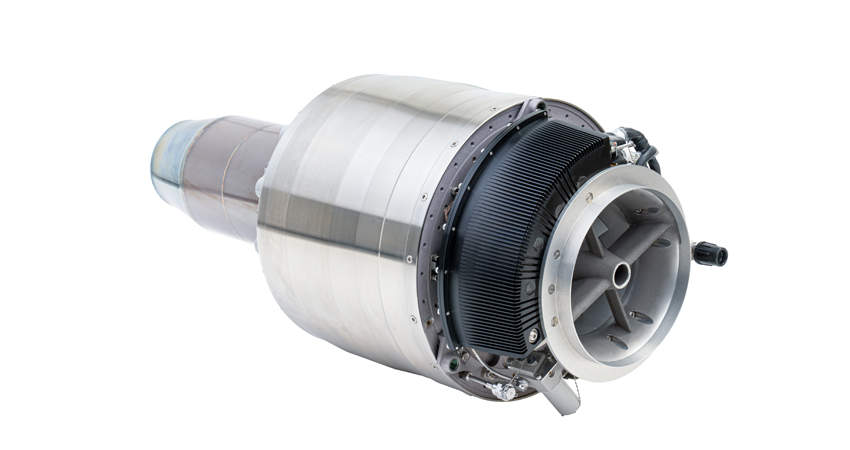

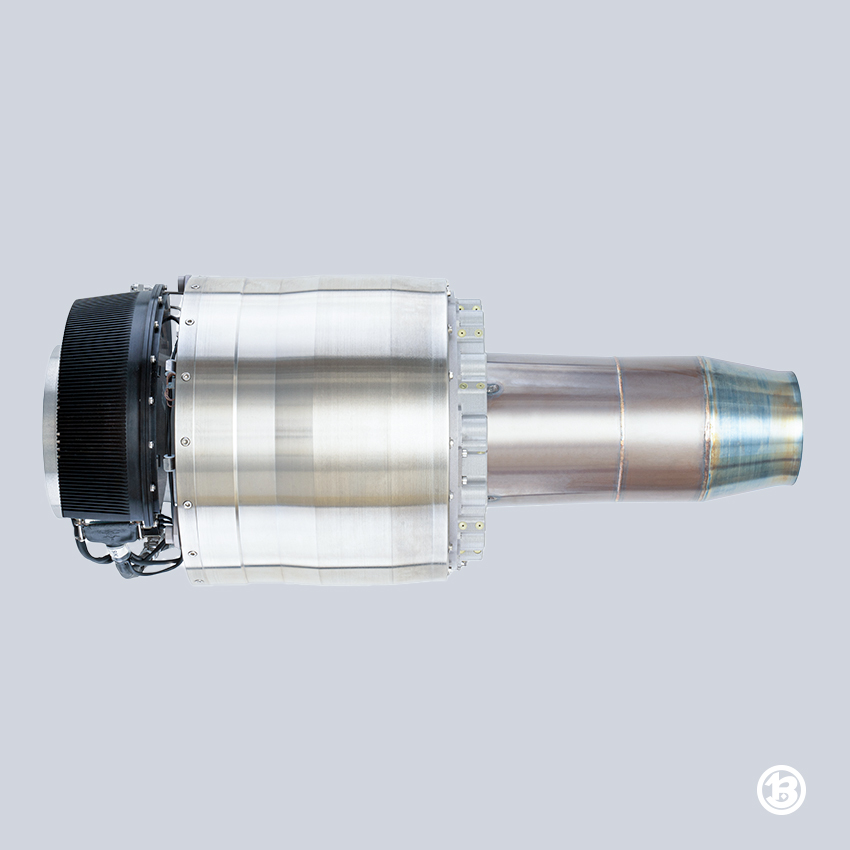

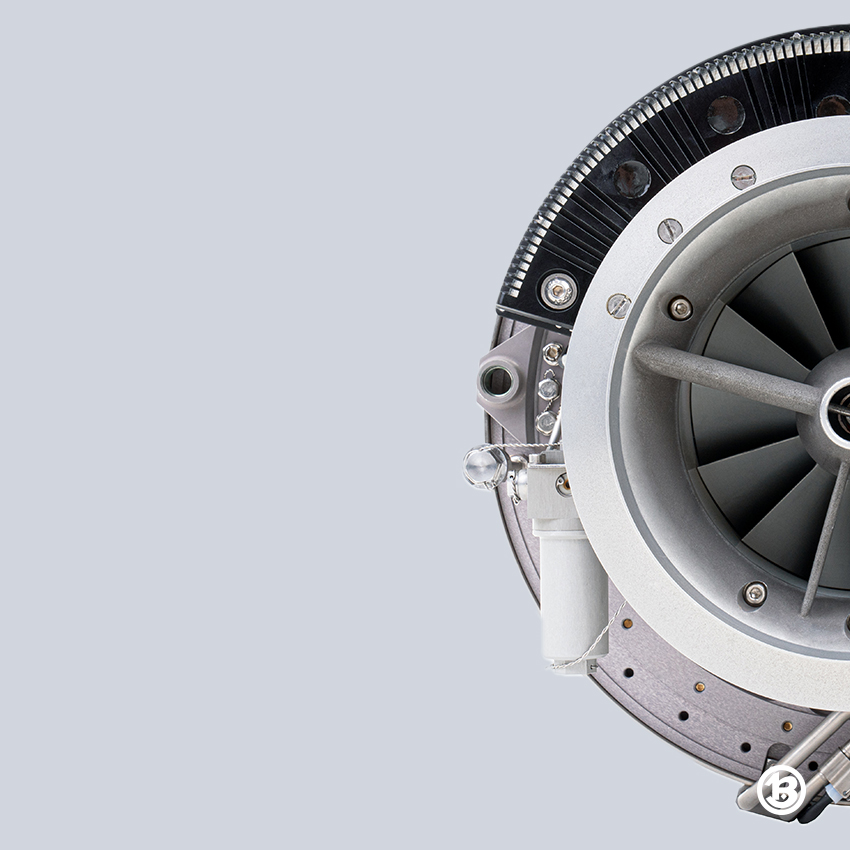

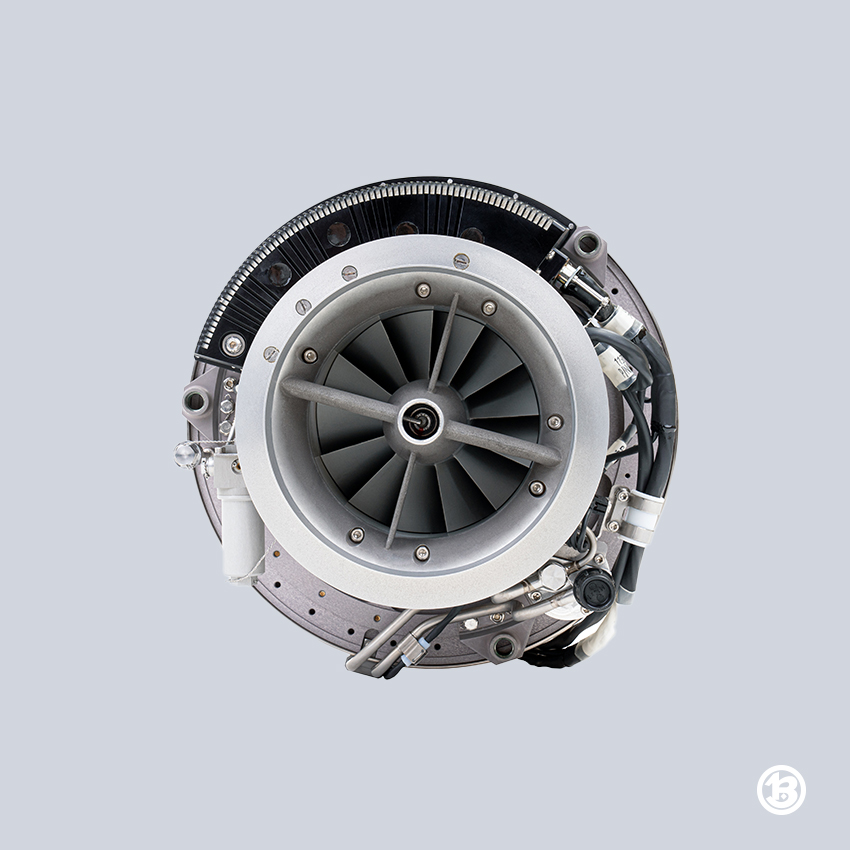

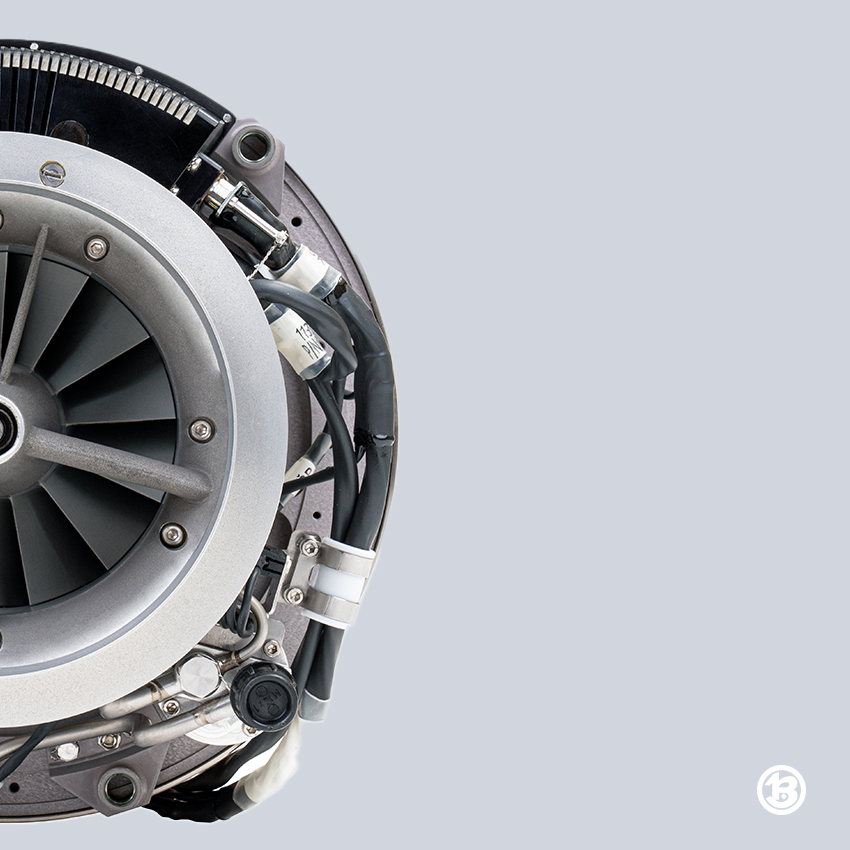

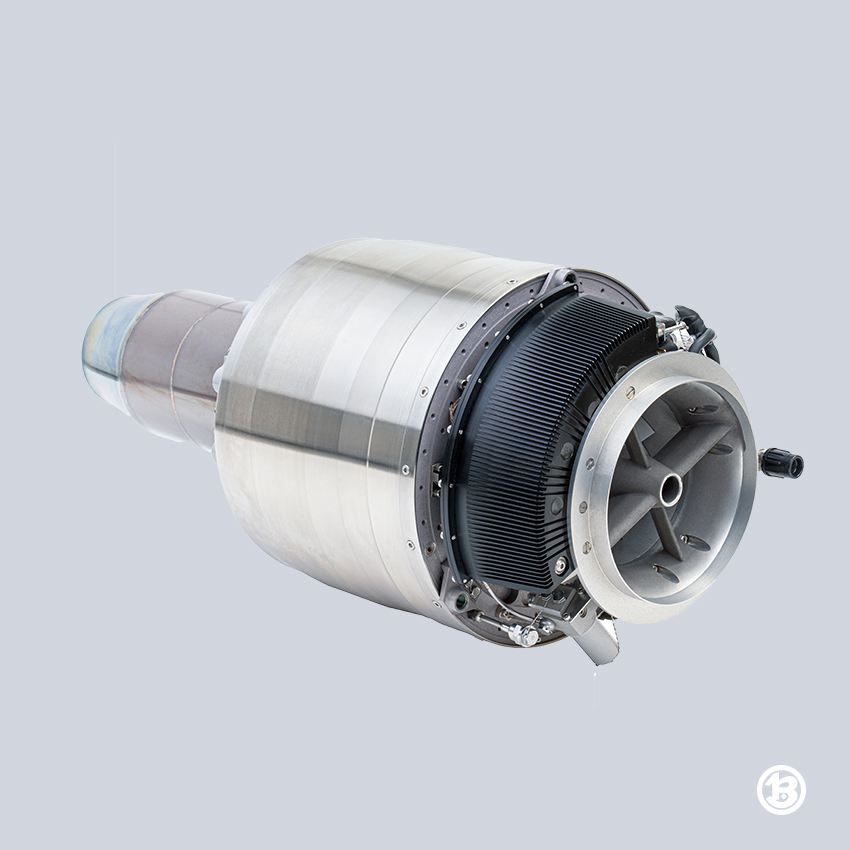

Jet Engine PBS TJ100P

Jet Engine PBS TJ100P

The versatile PBS TJ100 turbojet engine has a new fuel lubricated modification – PBS TJ100P. The engine has a lower weight and is suitable for use in target drones and various high-speed unmanned aerial vehicles.
  • Built-in starter-generator
  • Short starting sequence
  • Windmill starting option under 7 sec
  • Salt water recovery option
  • No tilt limits during operation

Fill out the form to view the 3D visualization

PBS.TopImage.Btn.Scroll
PBS continues to prove itself a leader in aerospace engineering with its in-house development, production, testing and certification of small jet engines. Over the last several decades, the company has developed and refined its designing and manufacturing processes to produce first-class aircraft engines.

The PBS TJ100P is an exceptional turbojet engine built by PBS. It is an extension of the PBS TJ100 line, which has been one of PBS’s most successful aircraft products to date with over 1,000 produced in 2019 alone. Building on the success of the original version, the PBS TJ100P contains many of the original features and components, while improving several of the features for added benefits to the customers.

The much-acclaimed features such as the excellent thrust-to-weight ratio at 1,250 N and the possibility of both ground and in-flight restarts remain the same. Likewise, the maximum altitude of 10,000 m and maximum speed of 0.8 M for the operating envelope and the maximum altitude of 6,000 m and maximum speed of 0.5 M for the starting envelope also remain the same.

Technical Parameters SI Units Imperial Units
Max. thrust 1,250 N 281 lbf
Fuel consumption 0.126 kg/N/H 1.236 lb/lbf/hr
Outer diameter 272 mm 10.71 in
Length 636 mm 25.04 in
Weight 17.6 kg 38.80 lb
Max. altitude for operating envelope 10,000 m 32,808 ft
Max. altitude for starting envelope 6,000 m  19,685 ft

Look at Tubrojet Engine brochure here.

Why us?

Intensive and rigorous testing

Intensive and rigorous testing

All of our aircraft engines must undergo and pass extreme testing situations, including air pressure up to 1,200 kPa, temperatures ranging between -60°C to 80 °C and vibration and impact tests, guaranteeing our customers products that will stand the test of time and conditions.
International success in aircraft production

International success in aircraft production

PBS has successfully designed and brought to fruition numerous versions of jet engines, all built and modified according to our customers’ demands and wishes. Our reliability and dedication to our production is appreciated and renowned by our customers.

Service, spare parts and overhauls of aerospace technology

We provide service of the highest quality for all users of our aerospace technology products.

We have long been working to extend the service life of our products, e.g. by introducing new technologies to produce the most exposed parts. Our turbine-based aicraft equipment regularly receives very good references.
